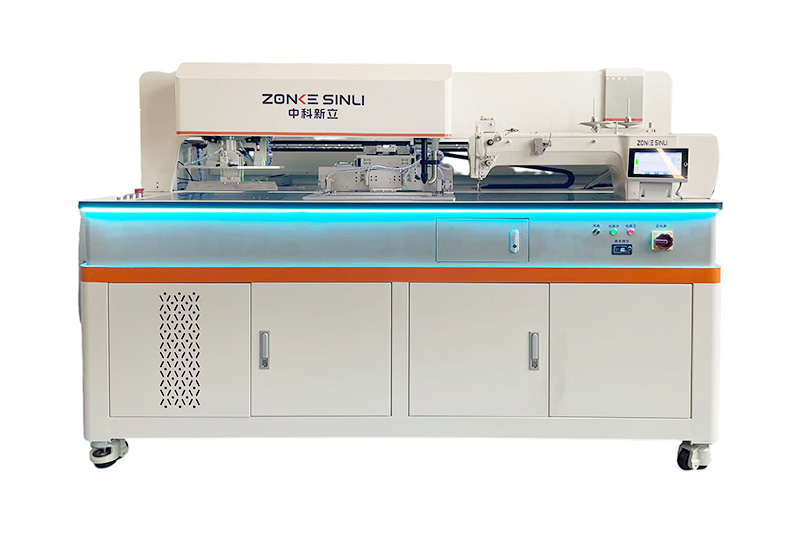

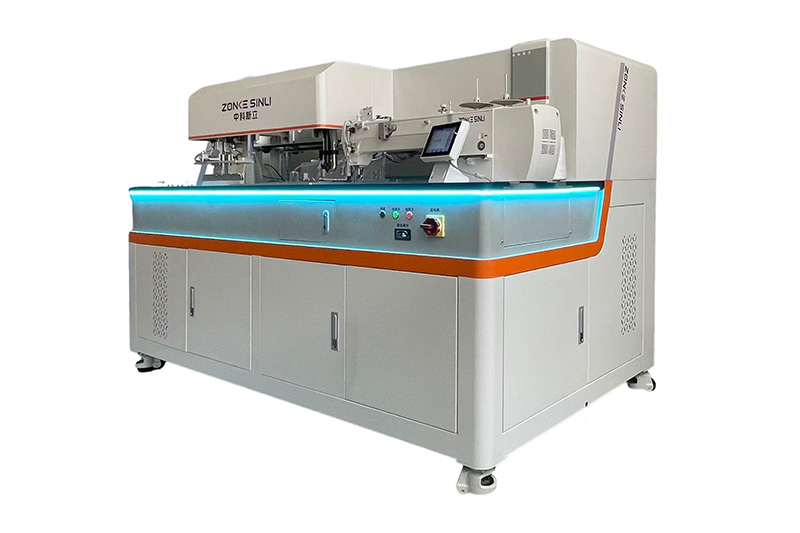

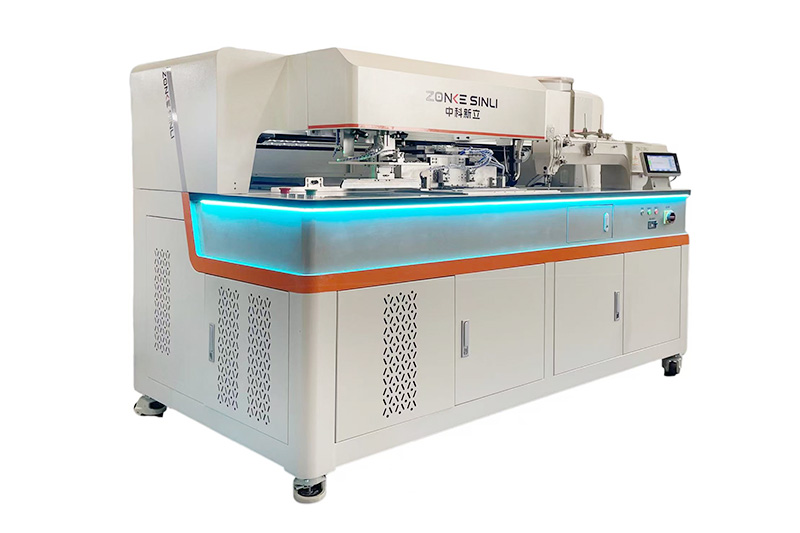

Z6-L Automatic Laser Pocket Welting Machine (Longer Version)-Products Center-ZonKe-SinLi-Fully automatic laser pocket opening machine

Application: real pocket, fake pocket, single lip pocket, double lip pocket, zipper pocket.

SPECIALIZED IN LARGE-SIZED POCKETS, A MUST-FOR JACKET &Hardshell Jacket POCKET WELTING, LABOR-SAVING & HIGHLY ADAPTABLE

◆ For a complete pocket processing cycle, it takes only 13 seconds. Pocket length can reach 400mm, specialized in large pockets for jackets and Hardshell Jacket, achieving over 4× efficiency compared to conventional machines.

◆ Highly efficient automatic material folding.

◆ Floating knife retraction ensures smooth edge finishing.

◆ Special mold design supports quick disassembly and replacement.

◆ External fabric support plate enables easy sewing of large-sized real pockets.

◆ High-power laser offers wide fabric adaptability.

◆ Supports Computerized Pattern Making design.

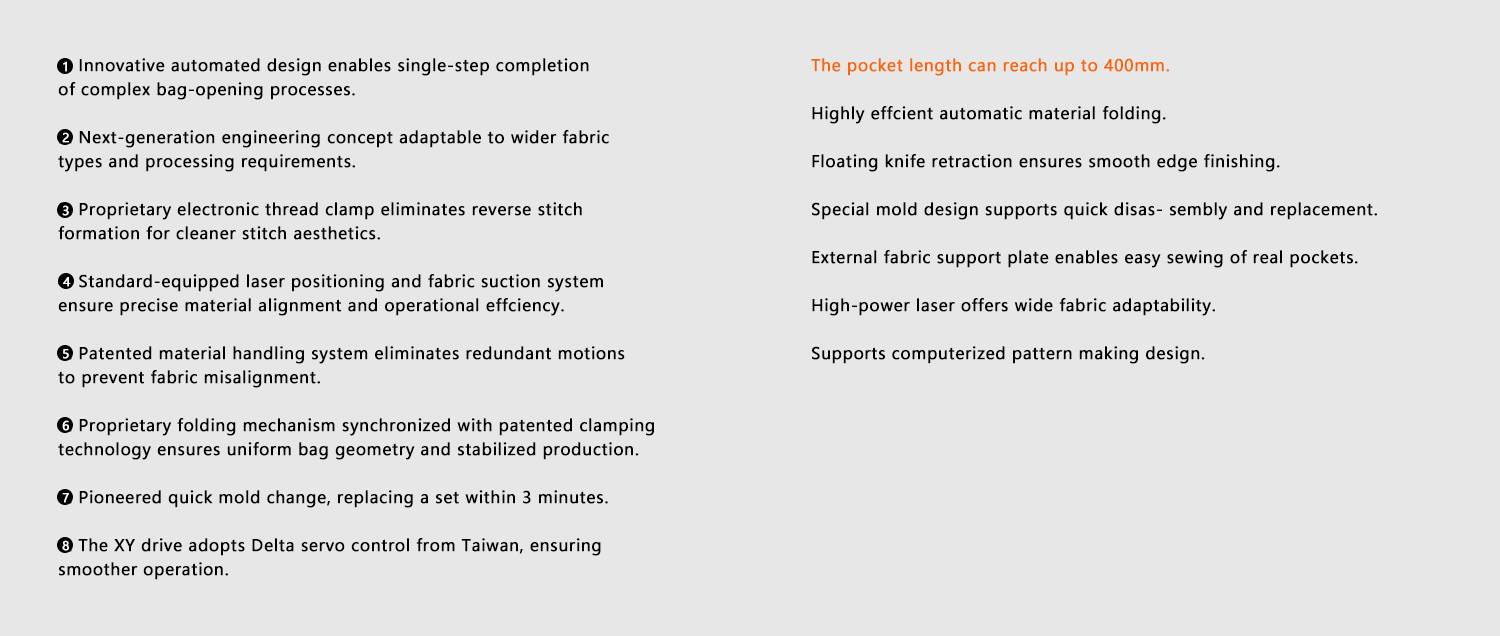

Product Features

1. Innovative automated design upgrade enables single-step efficient completion of large-sized bag-opening processes

2. Next-generation extended-adaptation concept adaptable to large-sized fabric types and processing requirements

3. Proprietary electronic thread clamp eliminates reverse stitch formation for more outstanding stitch aesthetic in large pockets

4. Standard-equipped laser positioning and fabric suction system ensure doubled precision and convenience in large-sized material alignment

5. Patented extended material handling system eliminates redundant motions to largely prevent large fabric misalignment

6. Proprietary folding mechanism synchronized with patented clamping technology ensures uniform large bag geometry and stabilized production

7. Pioneered quick mold change, replacing a set of large-sized molds within 3 minutes

8. The XY drive adopts Delta servo control from Taiwan, ensuring smoother operation under large loads

Maximum Head Sewing Speed	3000 RPM
Speed Setting	200–3000
Maximum Stitch Count	9999
Maximum Pattern	9999
Head Model	342G
Stitch Length	0.1–12.7mm
Pattern Storage	Internal Storage & USB Storage
Needle Model	Groz-Beckert DP×17 12#, 14#, 16#, 18#; Different fabrics correspond to different needle specifications to reduce malfunctions.
Shuttle	Imported from Japan: Hirose Hook, KOBAN; Handles both light silk and heavy denim with ease.
Pocket Sewing	Real Pocket, Faux Pocket, Crescent Pocket
Lock Case	Imported from Japan: Hirose Hook, KOBAN; More perfect stitches. High-toughness shrapnel prevents core spinning.
Pocket Sewing Range	X Direction: 35–400mm, Y Direction: 8–35mm
Presser Foot Type	Follower Presser Foot; Adjustable at any position based on different processes.
Presser Foot Height	28mm
Outer Frame Lifting Height	30mm
Inner Frame Lifting Height	25mm
Spindle Motor	Direct-Drive Servo Motor
Operating System	Smadi; Precisely controls sewing speed and tension, ensuring flawless stitches. For thin materials, it ensures delicate sewing results, while for thick materials, its powerful system can easily penetrate.
Electronic Control Display Language	Chinese, English, Vietnamese, Korean, Portuguese, Turkish [Additional languages can be added upon request]
Pocket Production Time	Faux Pocket: 17 seconds/unit, Real Pocket: 24 seconds/unit
Applicable Fabrics	Knit, Woven, Down, Cotton-Padded
Pocket Size	Length: 35mm–400mm, Width: 8mm–35mm
Transmission Method	Synchronous Belt and Slide Rail Structure; Smoother operation, more perfect stitches.
Infrared Positioning	Standard DANGER Multi-Group Infrared; Wavelength: 532nm, 635nm, 650nm, 780nm, 808nm, 980nm; Voltage: DC5V; Lifespan >10,000 hours [Color and quantity optional]
Laser	Standard Spite CO2 120W; High peak power, maintenance-free, lifespan over 100,000 hours.
X-Axis Y-Axis Motor	Delta 750W Servo, Inovance 750W Servo, HCFA 750W Servo [High-precision control, fast response, high torque output, diverse control methods, maintenance-free]
Suction	Medium-Pressure Blower for Smoke and Dust Suction; Air Volume: 17m³/min, Air Pressure: 1.9KPa, Noise<60dB, Power: 750W
Mold Change Method	Quick Modular Mold Change; Partial component replacement, faster mold change speed.
Pattern Generation Method	Automatic Generation, Manual Pattern Making
Pocket Folding Adjustment Control	Dedicated Screen Page Adjustment, Pattern Memory, Supports Single-Side Pocket Folding and Triangular Pocket
Single Pocket/Zipper Pocket Positioning	Standard AirTAC Swing Arm Positioning, Front-Back Linear Guide Positioning for Easier Adjustment
Thread Break Detection	Standard Thread Break Detection BAS-326G
Bobbin Thread Detection	Computer-Set Bobbin Thread Usage Quantity, Automatic Prompt
Pocket Folding Method	Four-Direction Cylinder Front-Back Folding
Pneumatic Components	AirTAC; Good sealing performance, strong pressure resistance, no air leakage or jamming during long-term operation, strong buffering performance, built-in cylinder buffer to effectively reduce impact speed and extend lifespan.
Guide Rail Components	AirTAC; Golden guide angle and integrated design further enhance precision and stability. Slide rails use medium carbon steel, sliders use high manganese steel, ensuring reliability and durability.
Thread Tension Adjustment	Mechanical Adjustment/Electronic Adjustment
Power Supply	AC220
Air Pressure/Air Consumption	0.6Mpa (5KG/m³), 22dm³/min
Net Weight	750KG
Display Screen	7-Inch Touch Screen
Equipment Dimensions	2300×1280×1550 (Length × Width × Height)
Loop Plate	Customizable

Model	Z6-L
Power Supply	AC 220V
Airpressure	0.6MPa(5kg/cm³）22dm³/min
Laser Power	120W
N.W.	750KGS
Machine size	2300mm 1280mm1550mm(LxWxH)
Package size	2400mm1520mm1930mm(LxWxH)
